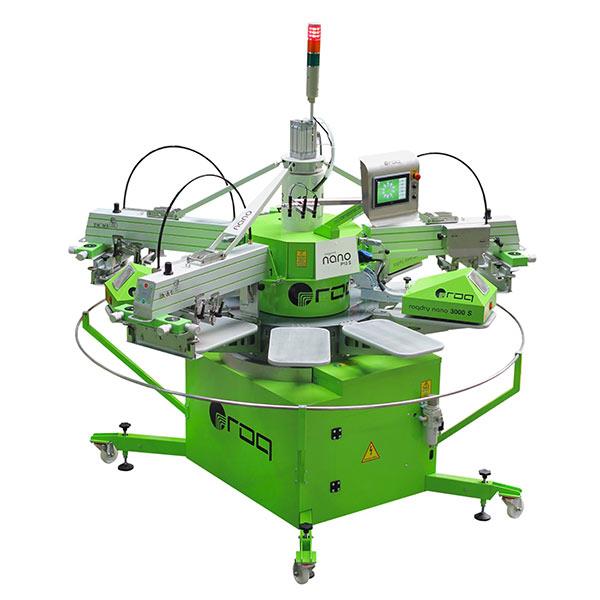

Screen Printing Machine
For Illustration Purpose Only

Screen Printing Machine Supplier

Reference No : 20181577

Business Lead : Selling Offer

Our knowledge, experience and engineering condensed into a powerful Screen Printing Machine for small prints. This screen printing machine is offered in one configuration, 10 pallets and 4 colors. The maximum printing area is 200mm by 200mm. This screen printing machine is an extremely powerful platform for printing smaller areas, such as t-shirts, sleeves or tags. It outputs an impressive 1200 pieces per hour. It uses specially designed flash units that are already embedded in the machine itself. It was designed to be small and still keep all the qualities of the ROQ screen printing machines, namely, the quality, durability, precision and reliability. Its smaller size makes it a perfect screen printing machine for smaller shops or to complement bigger machines. Having these market necessities in mind the ROQprint NANO was designed to fit through doors (the base of the machine is 800mm wide) and it can be moved without the need to level the machine lending the machine a unique set of uses and purposes.


    Number of Colors (max.) : 4
    Number of Pallets : 10
    Number of Flash Cure connection units (optional) : 4
    Maximum Cure Size : 200x200 / 7.9"x7.9"
    Maximum Print Size (mm/inch) : 200x200 / 7.9"x7.9"
    Maximum Screen Size (mm/inch) : 330x500 / 13"x19.7"
    Maximum Frame Profile / Thickness (mm/inch) : 30x30 / 1.2"x 1.2"
    Index Precision (mm/inch) : ± 0.025 / 0.001"
    Maximum Production (pieces/h)* : 1200
    Compressed Air Consumption (7 bar / 102 psi)** : 250 l/min - 8.9 cfm + Number of Each Printhead
    Maximum Consumption (kVA)*** : 2
    Machine Diameter (mm/feet) : 2180 / 7.2'
    Total Height (mm/feet) : 2150 / 7'
    Minimum Width of the base (mm/feet) : 800 / 2.6'
