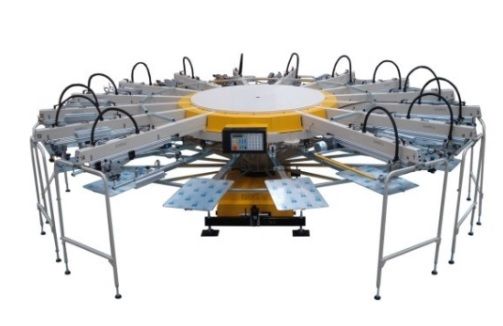

Screen Printing Machine
*Image For Illustration Purpose Only

Screen Printing Machine Supplier

Reference No : 20181578

Business Lead : Selling Offer

Our Screen Printing Machine series is our intermediate size machine, with a generous print area of up to 50cm x 63cm (20” x 25”). Probably our most popular model, the Hawk series is available in up to 16 colours upon request.


Specifications:

    Colours: 20
    Stations: 22
    Indexer: Electric
    Print Heads: Electric
    Max Outside Frame Size: 660mm X 940mm (26" X 37")
    Max Print Area: 508MM X 635mm (20" X 25")
    Diameter: 6400
    Weight: 5700kg
    Standard Pallet Size: 470mm X 762mm (18.5" X 30")
    Standard Squeegees & Flood Bars: 460mm
    Standard Squeegee Rubbers: 69 duro
    Electrical Requirements 220v/3Ph: 25amps 50/60hz
    Electrical Requirements 380-415v/3Ph: 27amps 50/60hz
    Compressed Air Requirement: 13 l/sec 21cfm @ 100 psi
    Micro Reg Adjustment: Standard
    AC Electric Rotation & Print Heads: Standard
    Central Off Contact: Standard
    Roto Print Program: Standard
    Squeegee Cylinders Knurled Knobs: Standard
    Squeegee Pressure Regulators: Standard
    Pneumatic Screen Clamping: Standard
    Multi-Functional Foot Switch Pedal: Standard
    Individual Head Off Contact: Standard
    Front, Centre & Rear Micro Registration: Standard
    Calibrated Individual Off-Contact: Optional

Dandenong South, Australia
Log in to view more information.
Not a member? Register for free

Address : 25 Kitchen Road   , Dandenong South , Australia , 3175

Contact Now

 Add To My Connections
Product Details

Production capacity : -

Trade Info

Min Order : 1 Sets
Export Market : Worldwide
Payment Terms : L/C

Price Info

Price : Price on request
